-- Technical characteristics --
Fibreglass sleeving-silicone impregnated
Composition: 1)Netted glas fibers (400 C)
2) soaked silicone (200 C)
Temperature attributes: Temperature use:
Class F (200 C)
reaching up to 350 C
Prevents the spreading of the temperature
Ideal for the covering of pasting

Electrical attributes: The uninflammable glass fibre guarantees insulation from 800V to 1000V
Chemical attributes:
Non piercable and with good resistance to humidity
and corrosive weather acidities
Good resistance to the most of the chemical substances
Formation to all the classic class B and F,H paints
Mechanical attributes: good elasticity after the paint

Excellent performance with curvings and all around pressures with longevity
Good endurance in time
Colors: Black - White
Packaging:

Diameter:
0,5 ~3mm-200m
4~12mm-100m
14~20mm-50m

-- Technical characteristics --
Fibreglass sleeving-polyurothane impregnated

Composition: 1)Glas fibers (400 C)
2)Polyourothane paint (155 C)
Temperature attributes: Temperature use:
Class F (200 C)
reaching up to 350 C
The uninflammable glass fibre guarantees insulation up to 1000V before the saturation
Prevents the spreading of the temperature
  Ideal for the covering of pasting
Electrical attributes:
Smash at 100 C reaching up to 4000 V
Chemical attributes: Non piercable and with good resistance to humidity
and corrosive weather acidities
Good resistance to oil and good form in all the classical class F paints
Mechanical attributes: good elasticity after the paint

Excellent performance with curvings and all around pressures with longevity
Good endurance in time
Colors: Various
Packaging: Diameter:
0,5 ~3mm-200m
4~12mm-100m
14~20mm-50m

-- Technical charasteristics --
Fibreglass sleeving-silicone elastomer coating
Composition: 1)Glas fibers (400 C)
2)Silicone (250 C)
Temperature attributes: Temperature use:
From -60 C until 200 C
reaching up to 280 C
Prevents the spreading of the temperature
Ideal for the covering of pasting
Electrical attributes: Maximum 3000V
Chemical attributes: Non piercable and with good resistance to humidity
and corrosive weather acidities
Good resistance to oil and good application to all high temperatures
Mechanical attributes: Big elasticity and perfect resistance to burning
Excellent performance with curvings and all around pressures with longevity
Big resistance to time
Colors: Red
Packaging: Diameter:
0,5 ~3mm-200m
4~12mm-100m
14~20mm-50m

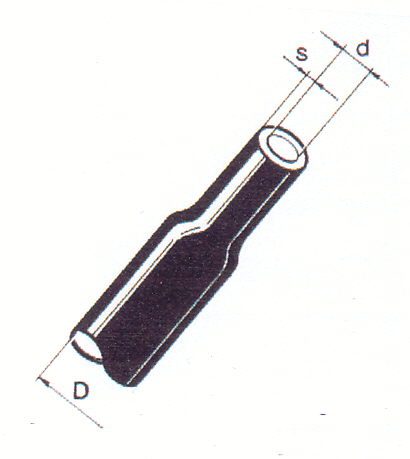

Heat-Shrink insulating sleeve

Internal diameter before reducing size D(mm)
Internal diameter after reducing size d(mm)
1,2
0,6
2,4
1,2
3,2
1,6
4,8
2,4
6,4
3,2
9,5
4,8
12,7
6,4
19,1
9,5
25,4
12,7
31,8
16,0
38,1
19,1
50,8
25,4
